MSRP: $3500
Price: $1700 - SOLD!!!

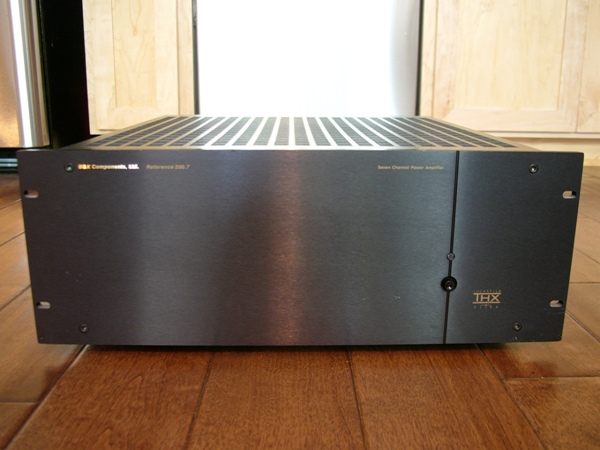

This Reference 200.7 Series 1 is a very smooth and powerful 7-channel amplifier, exceptionally clean sound with XLR inputs.
Conservatively rated 8/10.
Selling below Audiogon BB value of $1770!
200wpc @ 8 ohms
375wpc @ 4 ohms
Local pick-up in Los Angeles only. May be able to deliver to Orange County.
Willing to demo unit for local buyers.
Power Rating @ 8 ohms
200 W
Power Rating @ 4 ohms
375 W
Number of Channels
7
Amperage Peak to Peak
75
Dynamic Head Room
1.2 dB
Total Harmonic Distortion (THD)
0.09%
Signal to Noise (S/N)
95 dB
Input Impedance
33.2 kOhms
Damping Factor (50 Hz)
450
Frequency Response
5 Hz to 45 kHz
Slew Rate
14 V / µsec
Input Sensitivity (RCA) Unbalanced
1.4 V
Input Sensitivity (XLR) Balanced
2.8 V
Gain
28.3AV or 28dB
Line Voltage
120/220/240 VAC
Level Controls
No
Binding Post Maximum Wire Gauge
4 AWG
Balanced Inputs
Yes
Control Input
5 - 24 VDC
Control Output
10 - 12VDC 200mA
Dimensions in Inches
(Width/Height/Depth)
17" W
7.50" H
19.5" D
Shipping Weight
76 lbs.
Max Power Consumption
1830 Watts
Max Current Draw
17.5 Amps
Power Consumption at No Input
130 Watts
|
|
